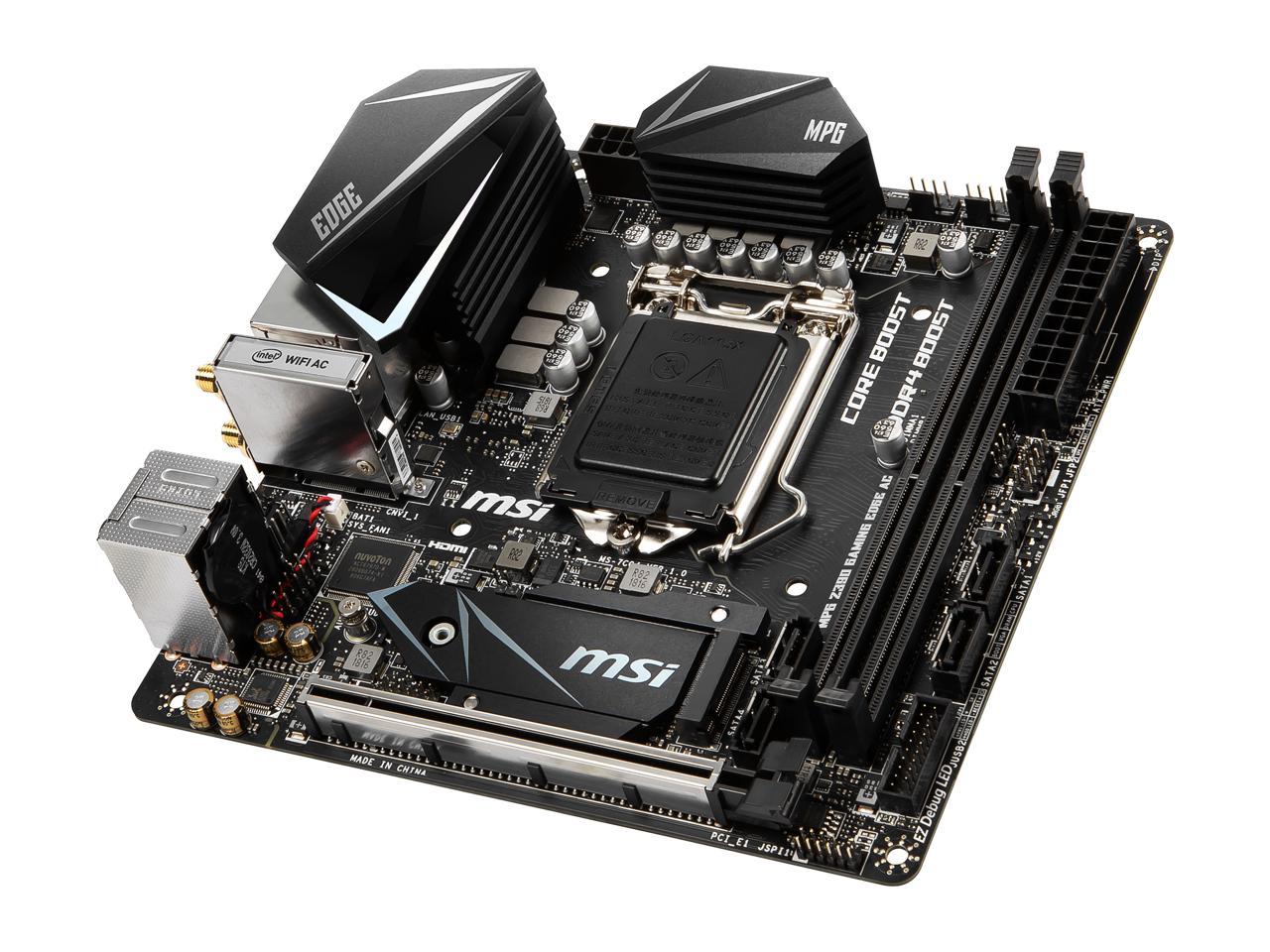

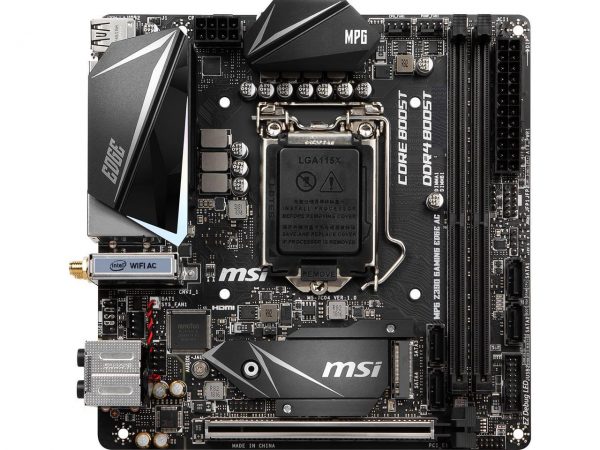

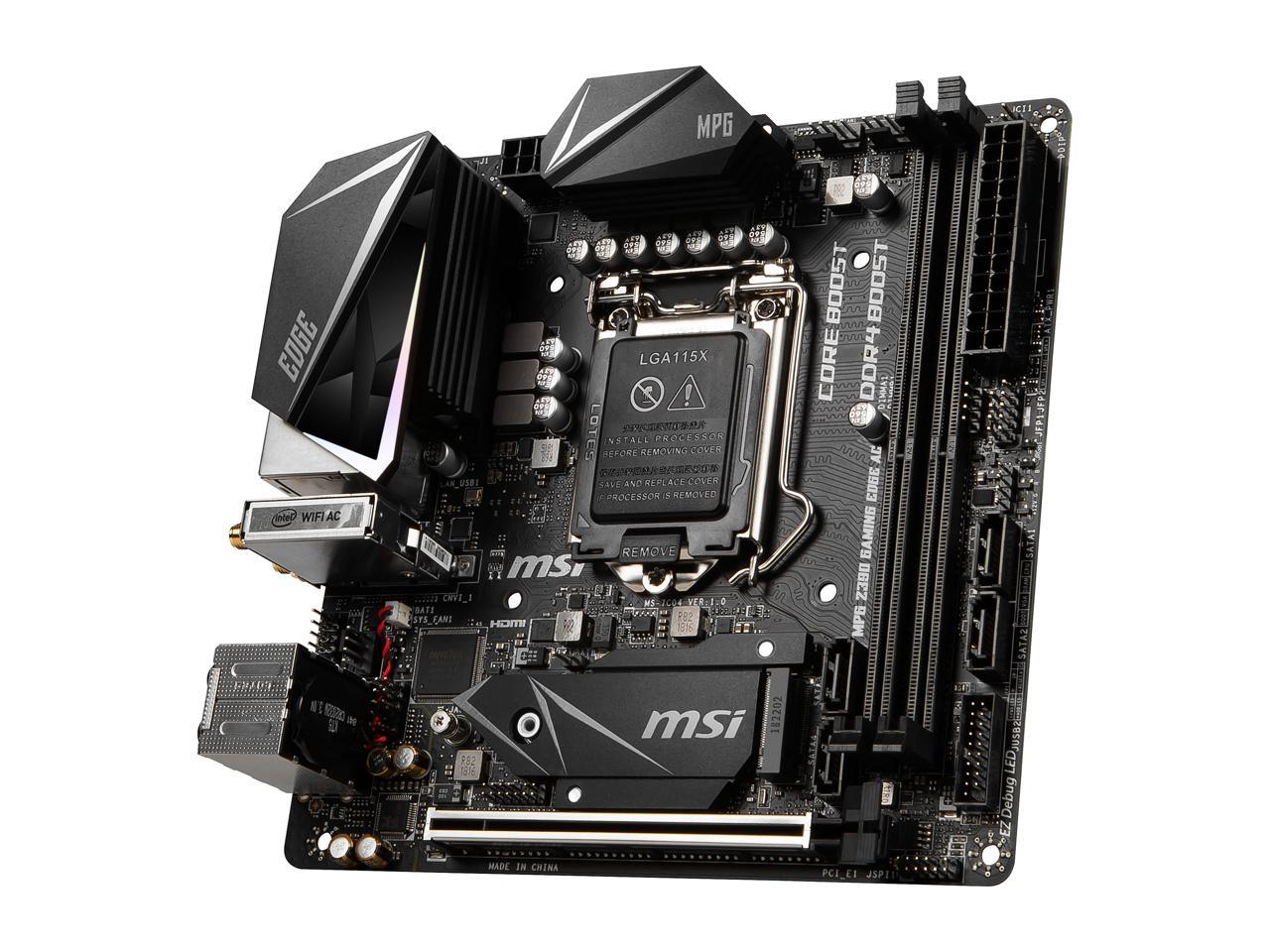

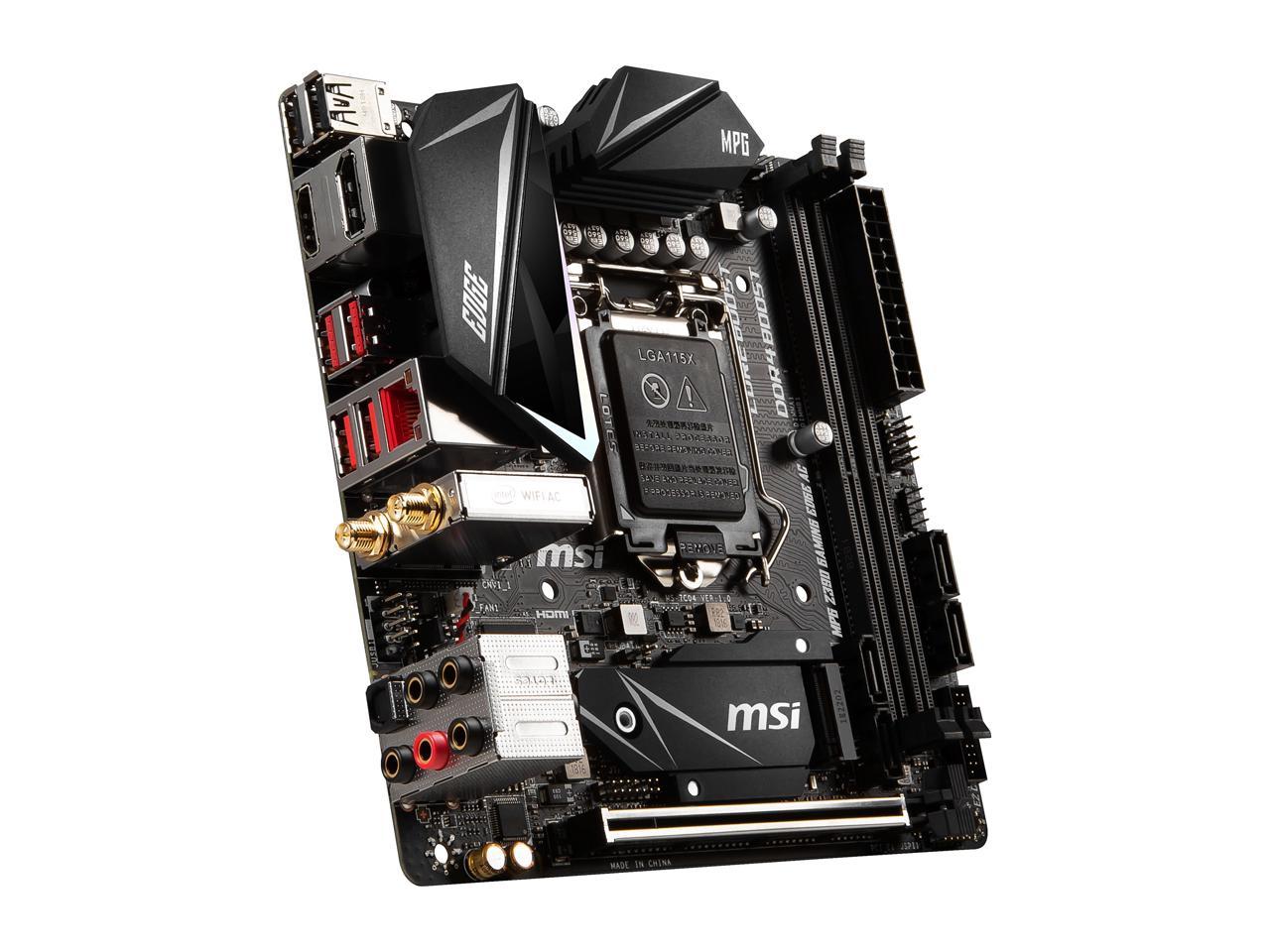

MSI MPG Z390I GAMING EDGE AC LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard（Renovation）
$266.28$307.44 (-13%)
- Supports 9th i9-9900K, i7-9700K, i5-9600K and 8th Generation Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Supports dual channel DDR4 Memory, up to 4400(OC) MHz; DIMM Slots: 4.Operating system: Support for Windows 10 64-bit
- 2x TURBO M.2, Intel Optane Memory Ready, Turbo USB 3.1 GEN2; USB 2.0 ports (Front): 4
- MYSTIC LIGHT: 16.8 million colors / 29 effects. Connect RGB or RAINBOW LED strips with addressable headers and create an RGB gaming PC. Control Mystic Light SYNC enabled products
- Built for high-performance gaming – Extended heatsink, ATX form factor ready for multi-GPUMPG Z390I GAMING EDGE AC
MPG Z390I GAMING EDGE AC
PERFECT IN BALANCE

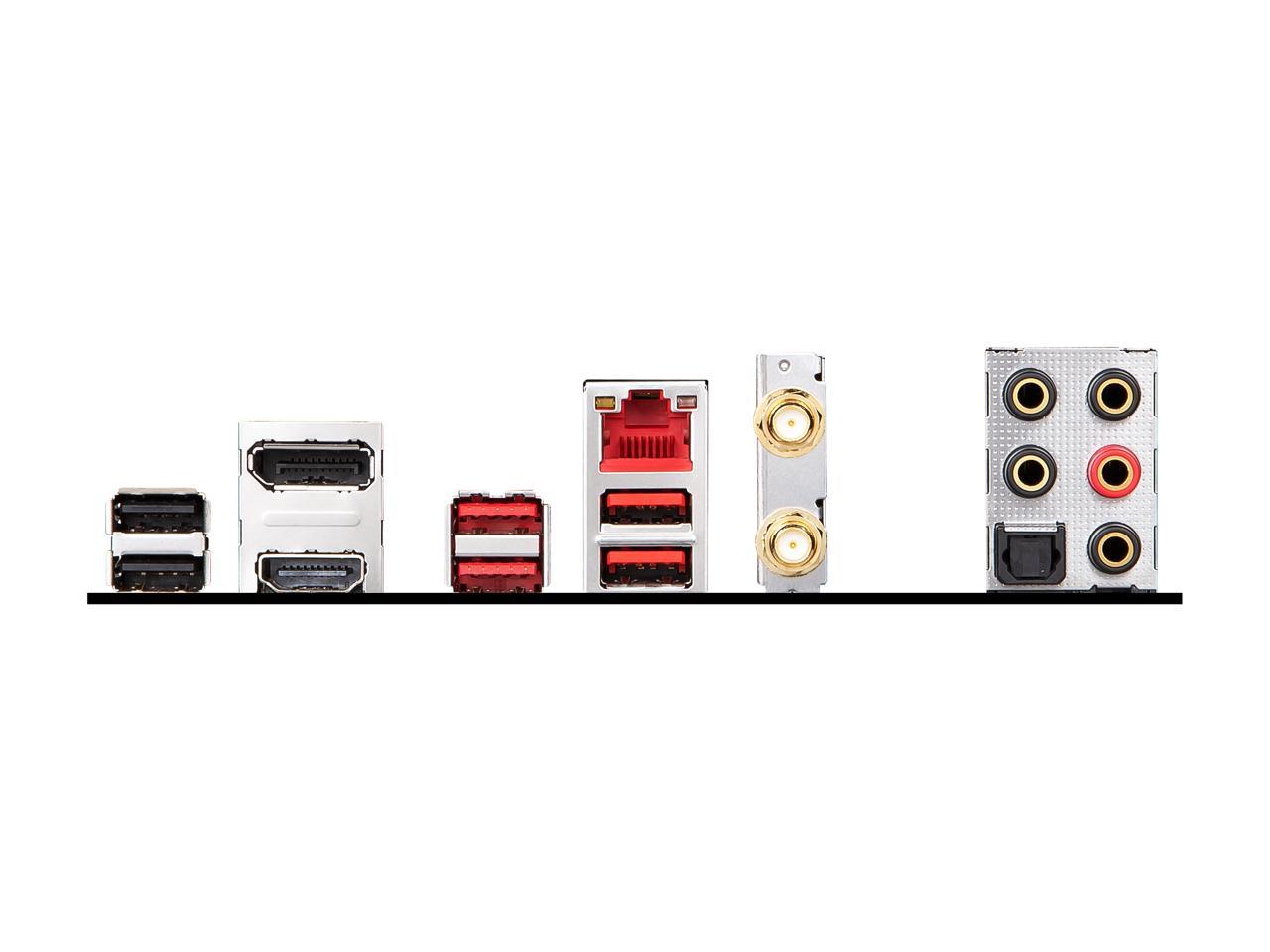

| 1 | Intel Wireless / Bluetooth |
| 2 | Intel Turbo USB 3.1 Gen2 |
| 3 | DisplayPort |
| 4 | LAN |
| 5 | Golden Audio Jacks |
| 6 | Gaming heatsinks Maximum cooling and performance |
| 7 | Z390 chipset Supports 9th Gen Intel Core processors |
| 8 | DDR4 Boost Optimized traces and isolated memory circuitry |
| 9 | Twin Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, ready for Intel Optane memory |
| 10 | PCI-E Steel Armor Shielded connector and prevent graphic card sagging |
| 11 | Audio Boost with amplifier Optimized gaming audio |
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
MSI Z390 motherboards are optimized to maximize the performance of 9th Gen Intel Core™ processors. Choose MSI and unleash the full potential of your system with an optimized power delivery design and load line calibration.
Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, TWIN Turbo M.2 is over 5 times faster than a regular SATA III connection!
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools created to keep you one step ahead of the competition.
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.
Like a dedicated sound card Audio Boost, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
| Brand： | MSI |
|---|---|
| Model： | MPG Z390I GAMING EDGE AC |
| CPU Socket Type： | LGA 1151 (300 Series) |
|---|---|
| CPU Type： | Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset： | Intel Z390 |
|---|
| Onboard Video Chipset ： | Supported only by CPU with integrated graphic: 1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz 1 x HDMI port, supports a maximum resolution of 4096×2160@24Hz |
|---|
| Number of Memory Slots： | 2x288pin (DDR4) |
|---|---|
| Memory Standard： | DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported: | 32GB |
| Channel Supported : | Dual Channel |
| PCI Express 3.0 x16: | 1 x PCI Express 3.0 x16 |
|---|
| SATA 6Gb/s : | 4 x SATA 6Gb/s ports* * The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot. |
|---|---|
| M.2: | 2 x M.2 slot (Key M)* M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2260/2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2260/2280 storage devices * The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot. |
| Intel Optane Ready: | Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID: | 0/1/5/10 |
| Audio Chipset : | Realtek ALC892 |
|---|---|
| Audio Channels: | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset: | Realtek 8111H |
|---|---|
| Max LAN Speed: | 1Gbps |
| Wireless LAN: | Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz up to 344 Mbps |
| Bluetooth: | Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5 |
