MSI MPG Z390 GAMING EDGE AC LGA 1151 (300 Series) Intel Z390 SATA 6Gb/s ATX Intel Motherboard（Renovation）
$225.96$241.92 (-7%)
- High speed performance and no slowness for online games, applications and downloads. It provides users with the fastest and smoothest internet experience.
- It can guarantee mute, low power consumption, low heating, energy saving and safe use.
- Perfect match: according to the original model design, perfect replacement installation, high-quality components.
- Advanced heat sink design with enlarged heat sink.
- We finish 100% tested before shipping.

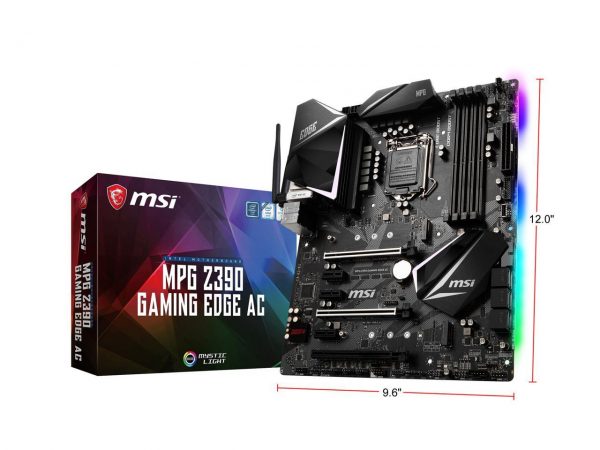

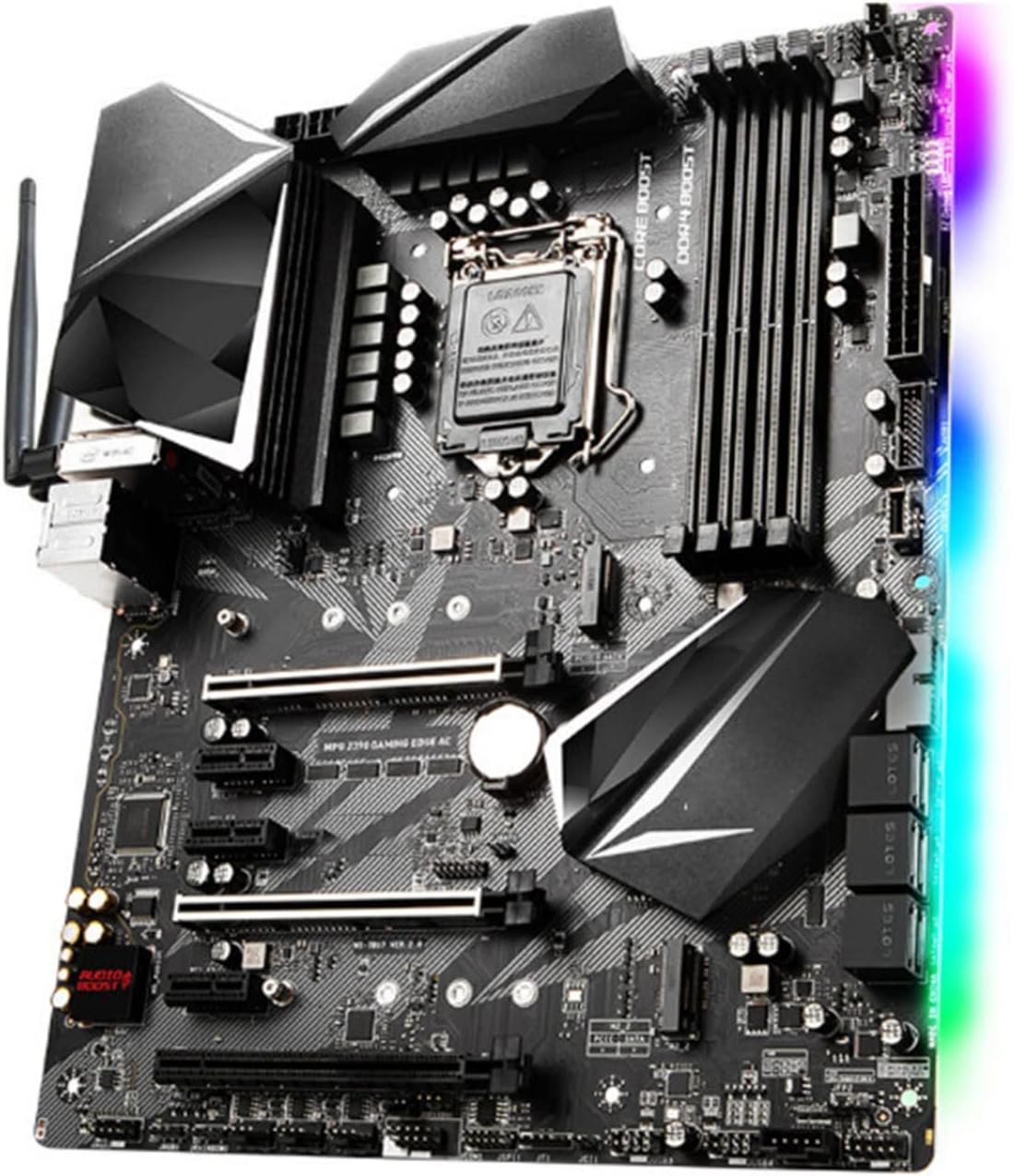

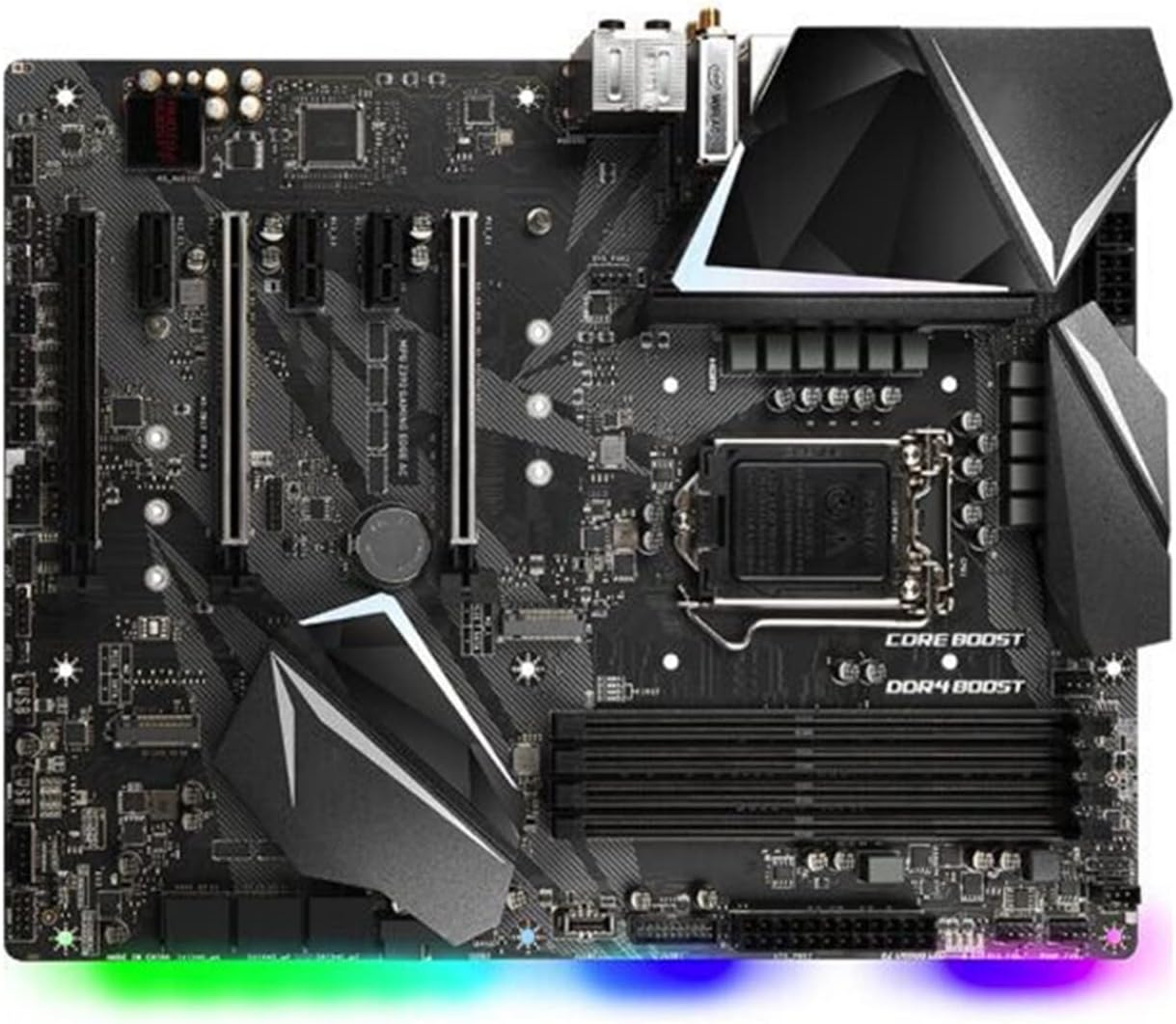

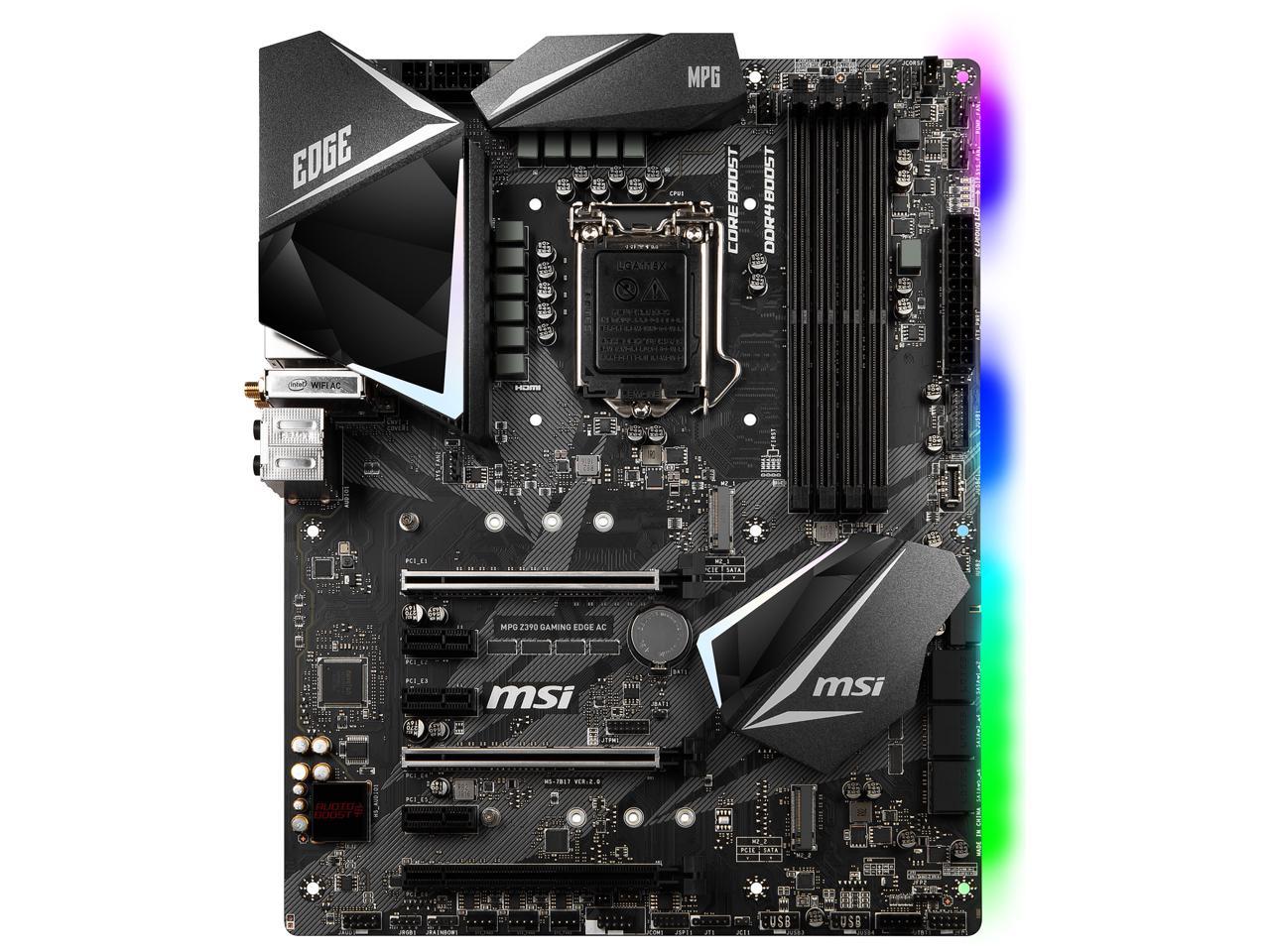

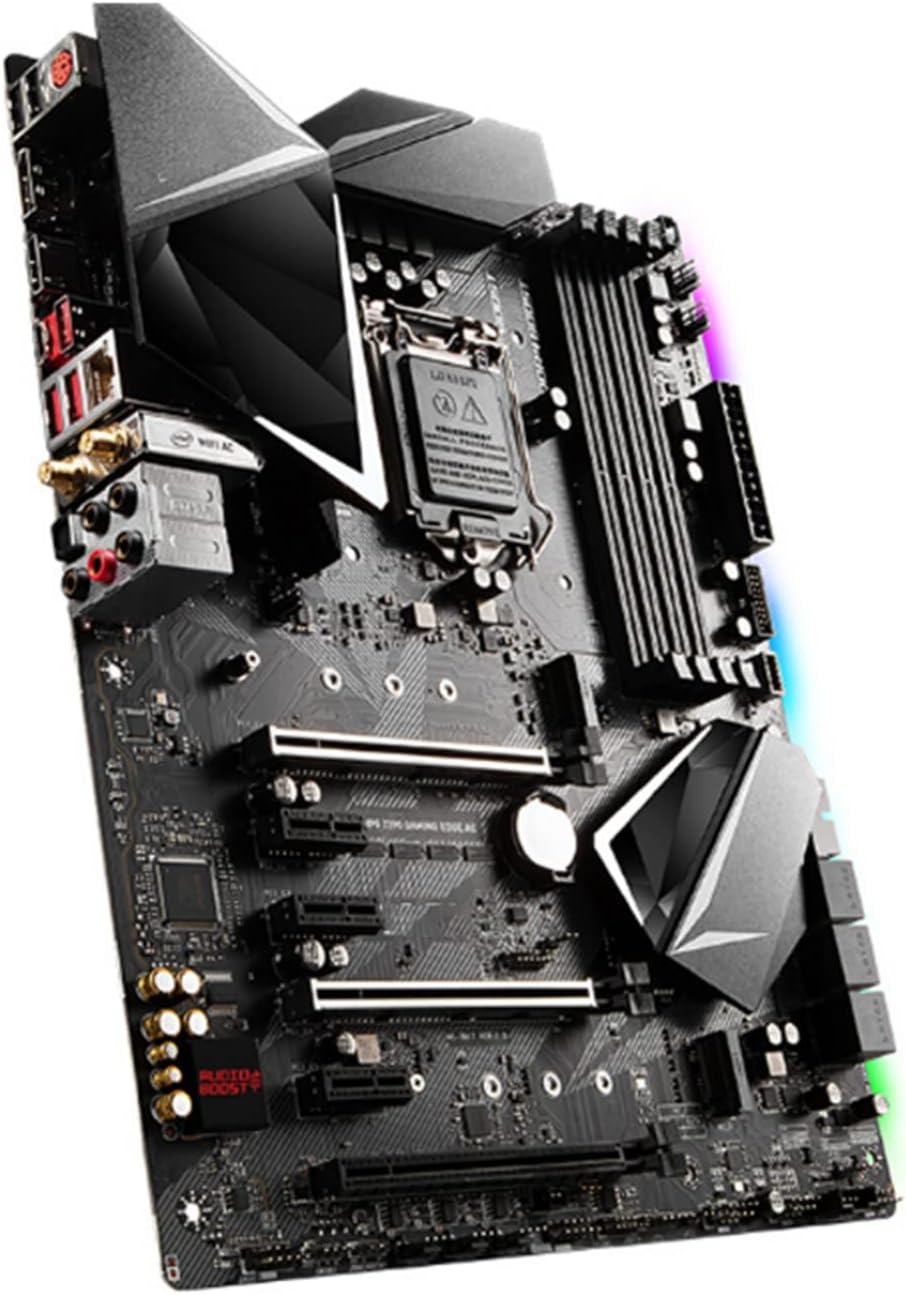

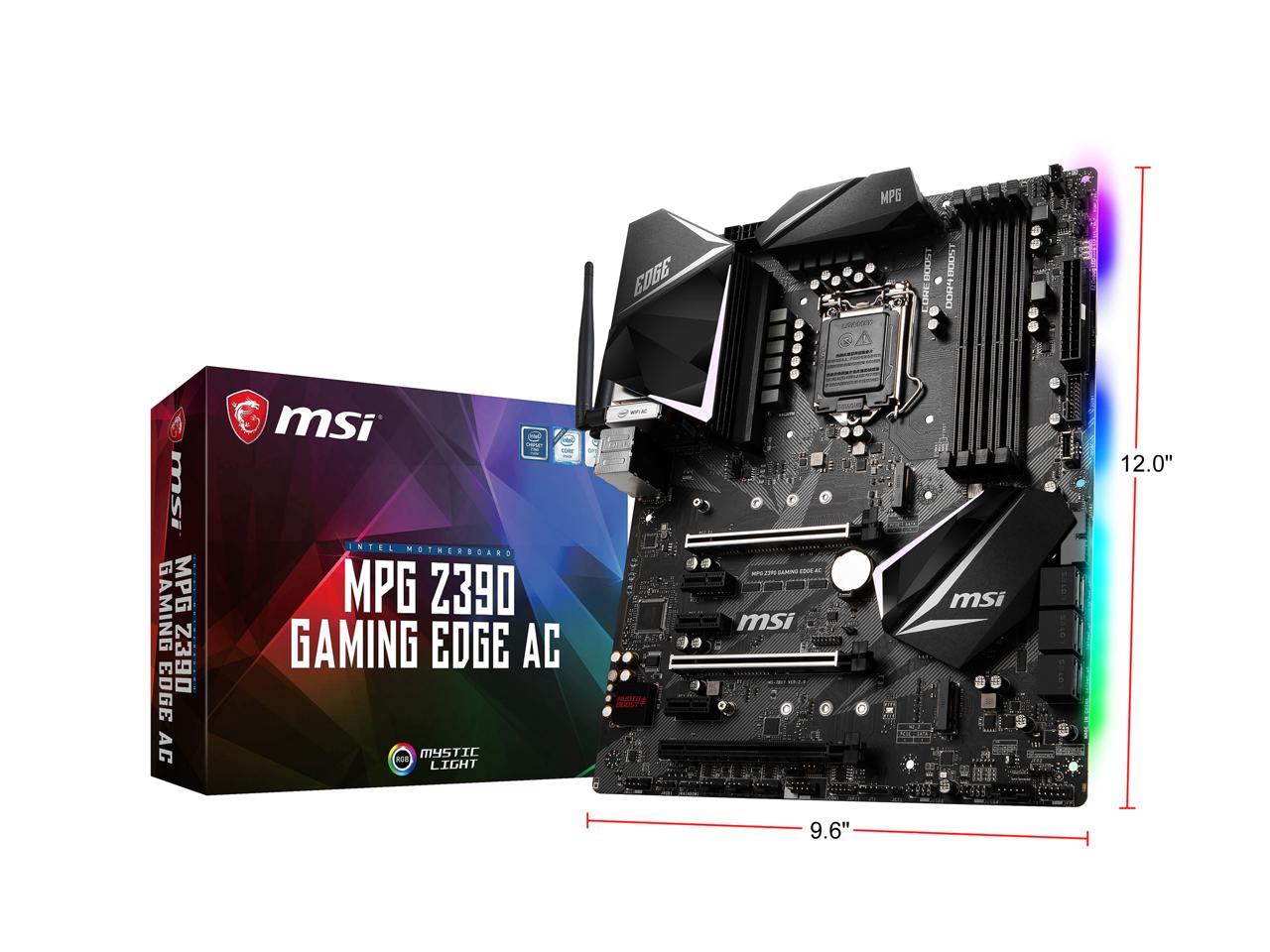

MSI MPG Z390 GAMING EDGE AC Motherboard
Powered by Intel Z390 chipset, this ATX board offers a solid foundation to build your new powerhouse based on 9th/8th Gen Intel Core processors of up to eight cores. A slew of slots and ports accommodate parts you choose today and add tomorrow, with three USB 3.1 Gen2 ports offering up to 10 Gbps bus bandwidth. Large heatsinks built onboard helps optimize cooling and creates a gorgeous look with bold, salient lines that echoes with patterns printed on PCB. And with built-in LED lighting plus RGB and rainbow headers, you’ll have the ability to create and customize a unique light show to reflect your taste or enhance the gaming vibe.
- Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz

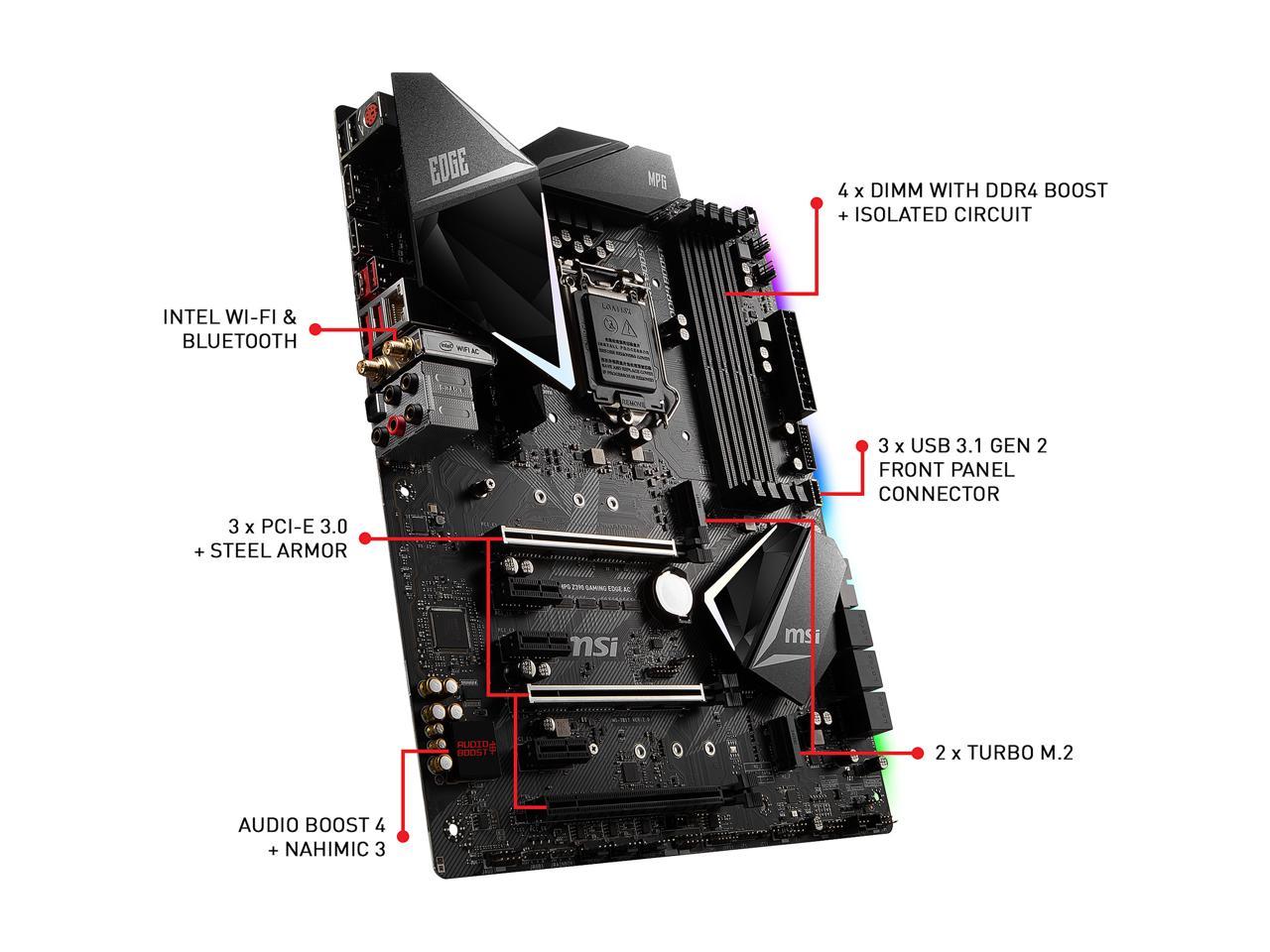

- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2

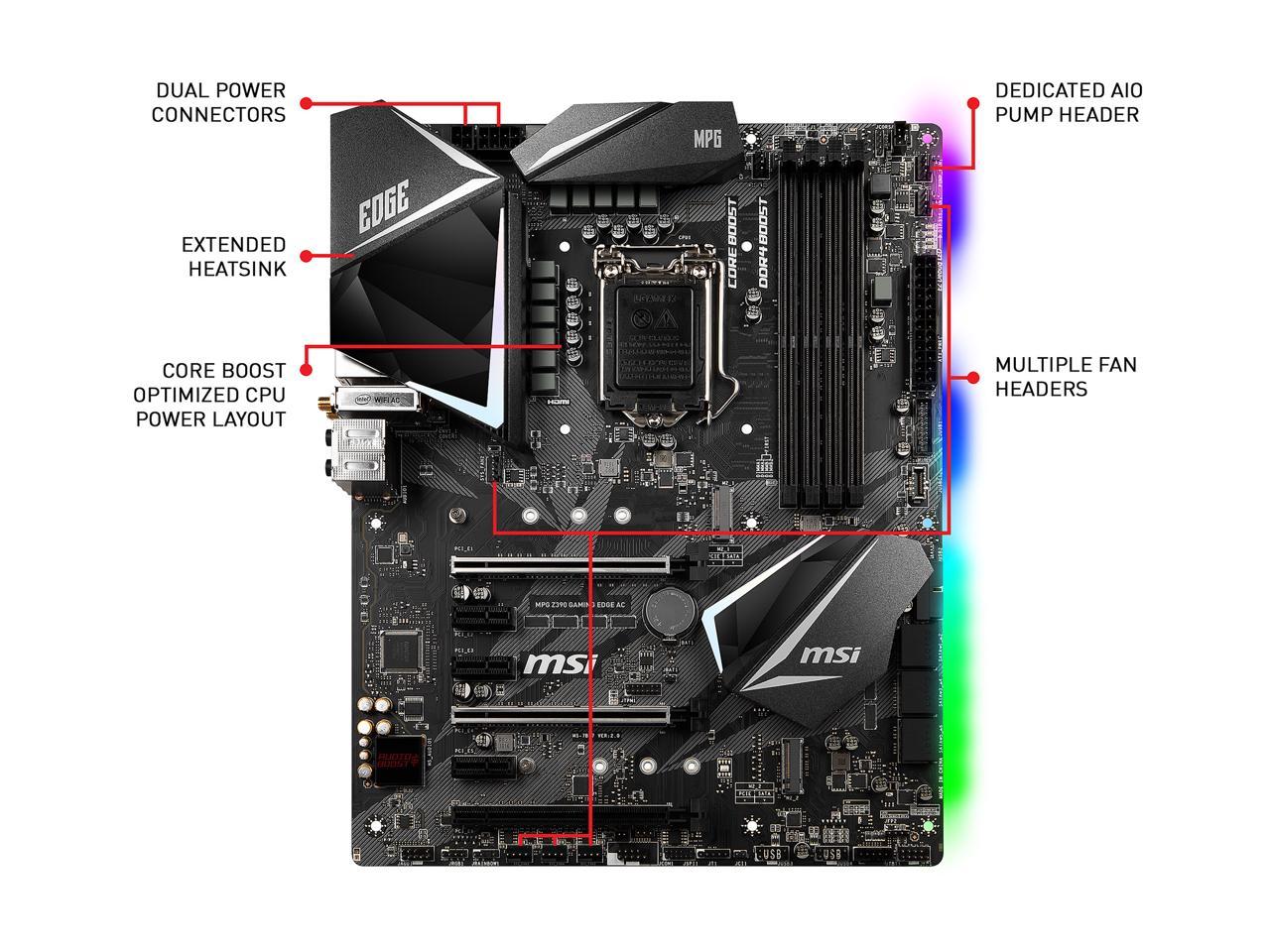

- Set Core Power Free: Extended Heatsink Design, Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost

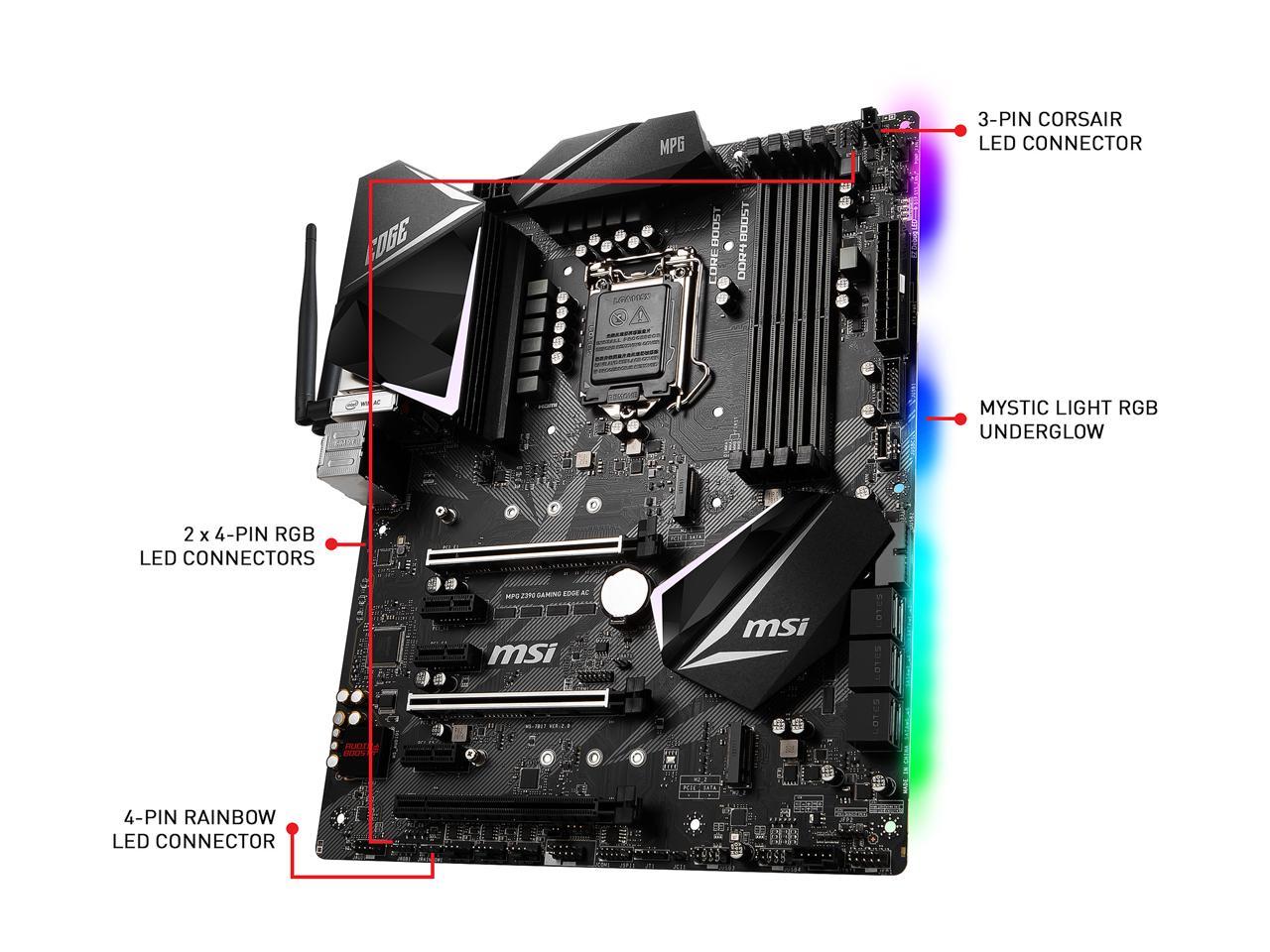

- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
|
|
Personalize your PC with 16.8 million colors and 29 effects through with the Mystic Light APP or a mobile device.
Core Boost technology combines MSI’s premium circuit layout and digital power design to deliver undistorted current to the CPU with pin-point precision. Core Boost not only sustains multi-core CPUs, but also creates the perfect conditions for CPU overclocking.
Tap into extra power when needed with 8+4 pin connectors and unleash more performance with extreme overclocking.
MSI Z390 motherboards are optimized to maximize the performance of 9th Gen Intel® Core™ processors. Choose MSI and unleash the full potential of your system with an optimized power delivery design and load line calibration.
Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, TWIN Turbo M.2 is over 5 times faster than a regular SATA III connection!
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools created to keep you one step ahead of the competition.
Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
| Brand | MSI |
|---|---|
| Model | MPG Z390 GAMING EDGE AC |

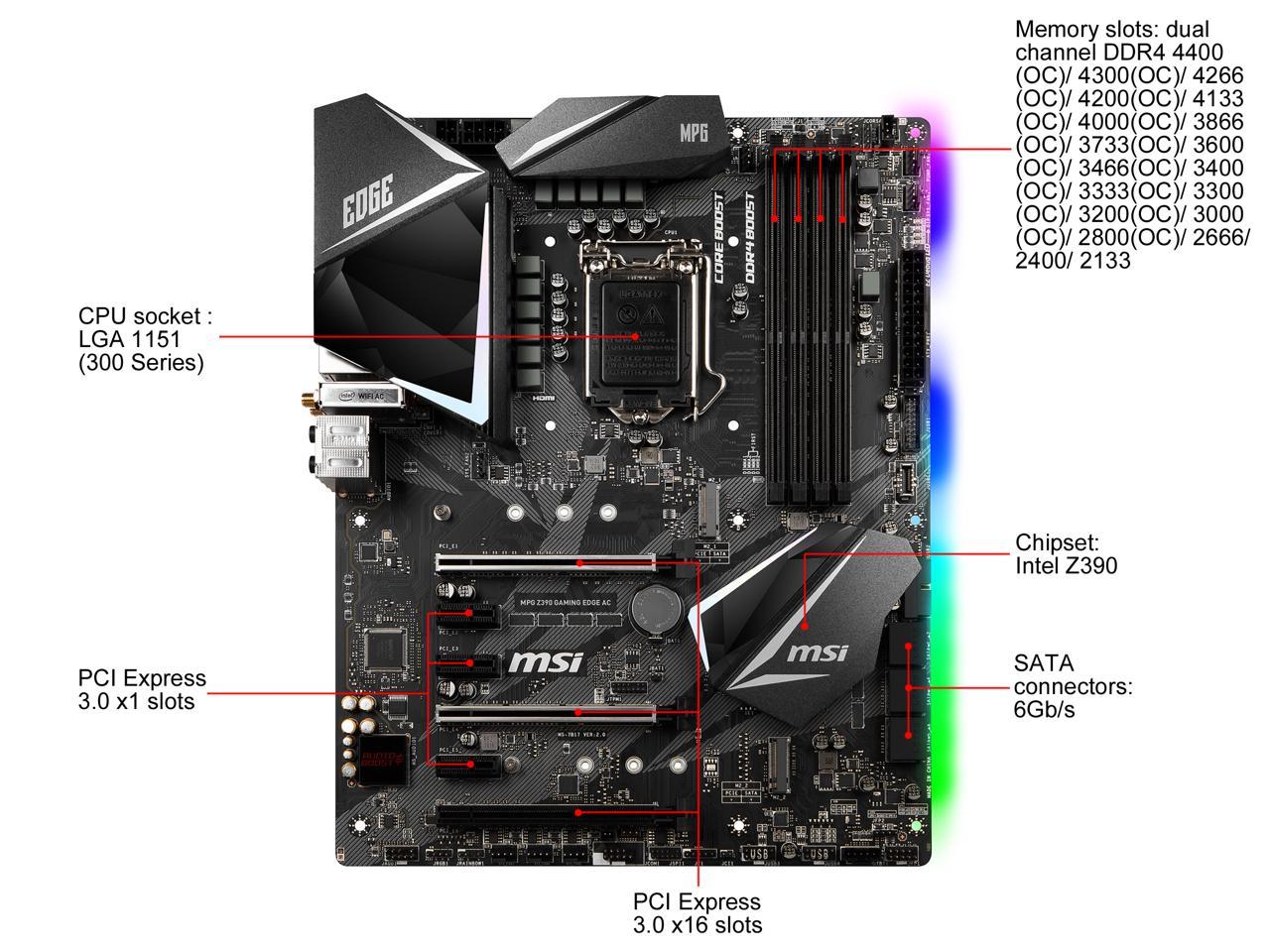

| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports Intel Core 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096×2304@60Hz |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) |
|---|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s ports* * M.2 slots and SATA ports share the bandwidth. |
|---|---|
| M.2 | 2 x M.2 slot (Key M)* Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices* M.2 slots and SATA ports share the bandwidth. |
| Intel Optane Ready | Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220P Codec |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Wireless-AC 9462 card Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz up to 433 Mbps |
| Bluetooth | Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5 |
