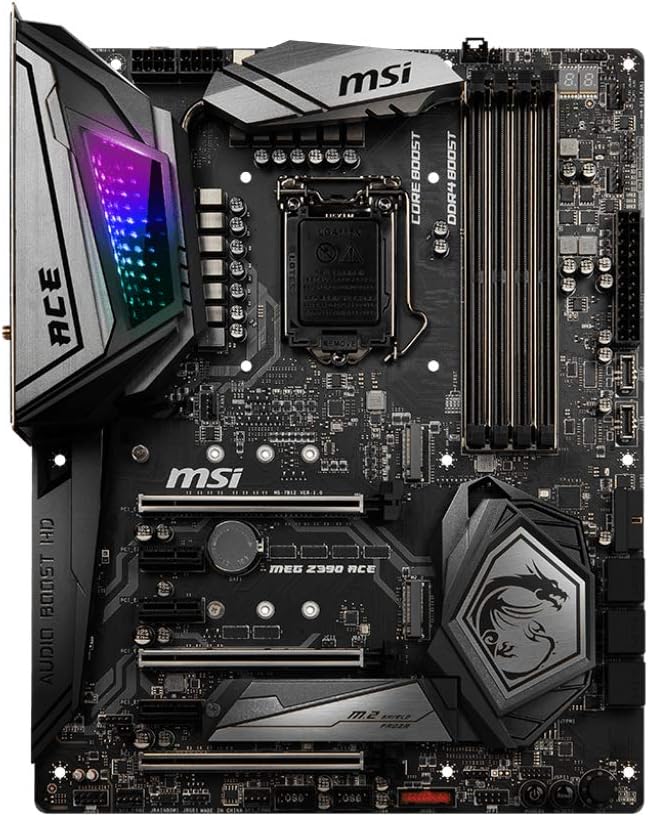

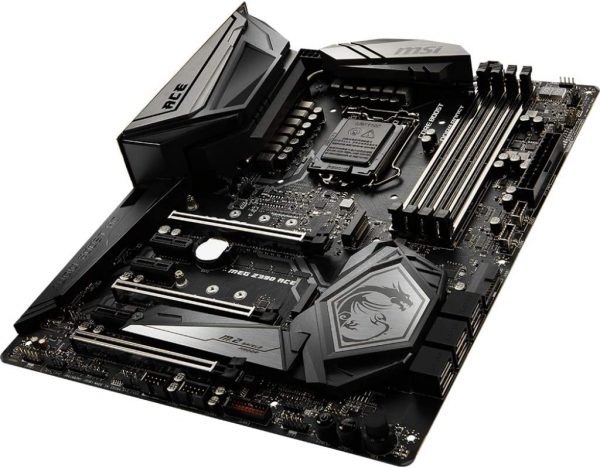

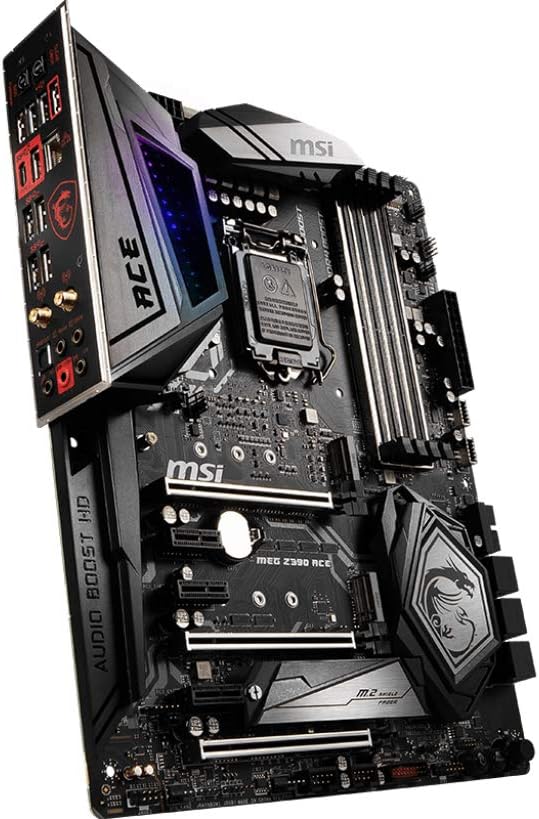

MSI MEG Z390 ACE LGA1151 (Intel 8th & 9th Gen) M.2 USB 3.1 Gen 2 DDR4 Wi-Fi SLI CFX ATX Gaming Motherboard（Renovation）
$234.36$256.20 (-9%)
| Brand | MSI |
| CPU socket | LGA 1151 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR4 |
| Compatible processors | Intel Celeron, 9th Generation Intel Core, 8th Generation Intel Core, Intel Pentium Gold |
| Chipset type | Intel Z390 |
| Memory clock speed | 4600 MHz |
| Platform | Windows 10 |
| CPU model | Pentium |
| Memory storage capacity | 64 GB |
ONE BOARD TO RULE THEM ALL

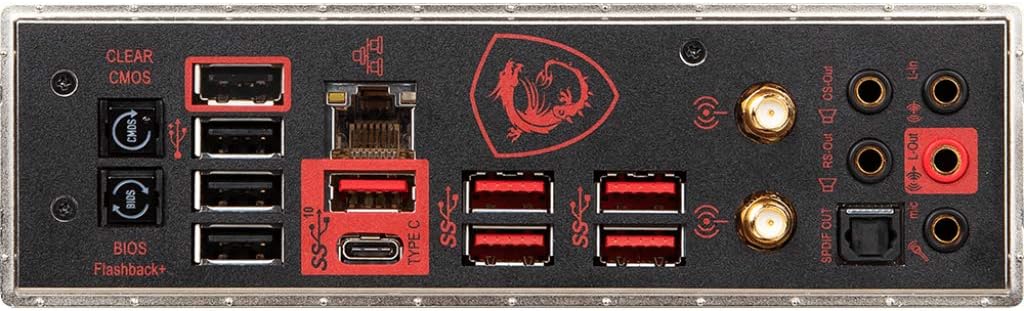

| 1 | Pre-Installed I/O Shielding |
| 2 | Clear CMOS & FlashBack+ |
| 3 | Killer™ xTend |
| 4 | 6.35mm headphone out |
| 5 | Golden Audio Jacks with S/PDIF |
| 6 | Mystic Light Infinity Customizable RGB lighting with infinity mirror |
| 7 | Solid heatsink with RGB LED Stay cool and customize colors |
| 8 | Dynamic Dashboard Built-in OLED display |
| 9 | DDR4 Boost with Steel Armor Optimized traces and isolated memory circuitry |
| 10 | Triple Turbo M.2 with Shield FROZR 3x M.2 SSDs, sustain maximum M.2 SSD performance |
| 11 | Turbo U.2 with Steel Armor NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4 |
| 12 | Game Boost Button Shift to one of 8 preset gears for performance |
| 13 | Xtreme Audio DAC with 6.3mm headphone Optimized gaming audio with Nahimic |
CORE BOOST
Core Boost technology combines MSI’s premium circuit layout and digital power design to deliver undistorted current to the CPU with pin-point precision. Core Boost not only sustains multi-core CPUs, but also creates the perfect conditions for CPU overclocking.
EXTREME STORAGE PERFORMANCE: TWIN TURBO M.2
Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, TWIN Turbo M.2 is over 5 times faster than a regular SATA III connection!
AMPLIFY YOUR GAME WITH AUDIO BOOST 4
Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 4 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCIe 3.0 x1 slot |
| SATA 6Gb/s | 6 x SATA 6Gb/s * M.2_2 slot, U.2 port and SATA ports share the bandwidth. |
|---|---|
| M.2 | 3 x M.2 slots (Key M)* – M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices – M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices 1 x U.2 port* – Supports PCIe 3.0 x4 NVMe storage* M.2_2 slot, U.2 port and SATA ports share the bandwidth. |
| Intel Optane Ready | Intel Optane Memory Ready ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | 2 x Realtek ALC1220 Codecs |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 2 x Killer E2500 Gigabit LAN controller |
|---|---|
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | Killer 1550 Chipset – The Wireless module is pre-install in the M2_4 (Key-E) slot – Supports Wi-Fi 2×2 802.11 AC |
| Bluetooth | Supports Bluetooth 4.1, 3.0+HS |
| PS/2 | 1 |
|---|---|
| RJ45 | 2 x RJ45 |
| USB 3.1 | 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports 2 x USB 3.1 Gen1 (SuperSpeed USB) ports |
| USB Type-C | 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x HD Audio Connectors 1 x 6.3mm headphone out |
| Antenna Connectors | Wi-Fi /Bluetooth Antenna Connectors |
| Onboard USB | 2 x USB 3.1 Gen2 Type-C ports 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 8 x 4-pin system fan connectors 1 x 3-pin Water Flow connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 2-pin Thermal Sensors connectors 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector |
| Form Factor | Extended ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 10.7″ |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX PCIe power connector |
