MSI MPG Z390 GAMING PLUS LGA 1151 (300 Series) Intel Z390 SATA 6Gb/s ATX Intel Motherboard（Renovation）
$227.64$257.04 (-11%)
| Brand | MSI |
| CPU socket | Socket FT1 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR4 |
| Compatible processors | Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Chipset type | Intel Z390 |
| Memory clock speed | 4400 MHz |
| Platform | Windows 10 |
| Model name | MPG Z390 GAMING PLUS |
| CPU model | Core i9 |

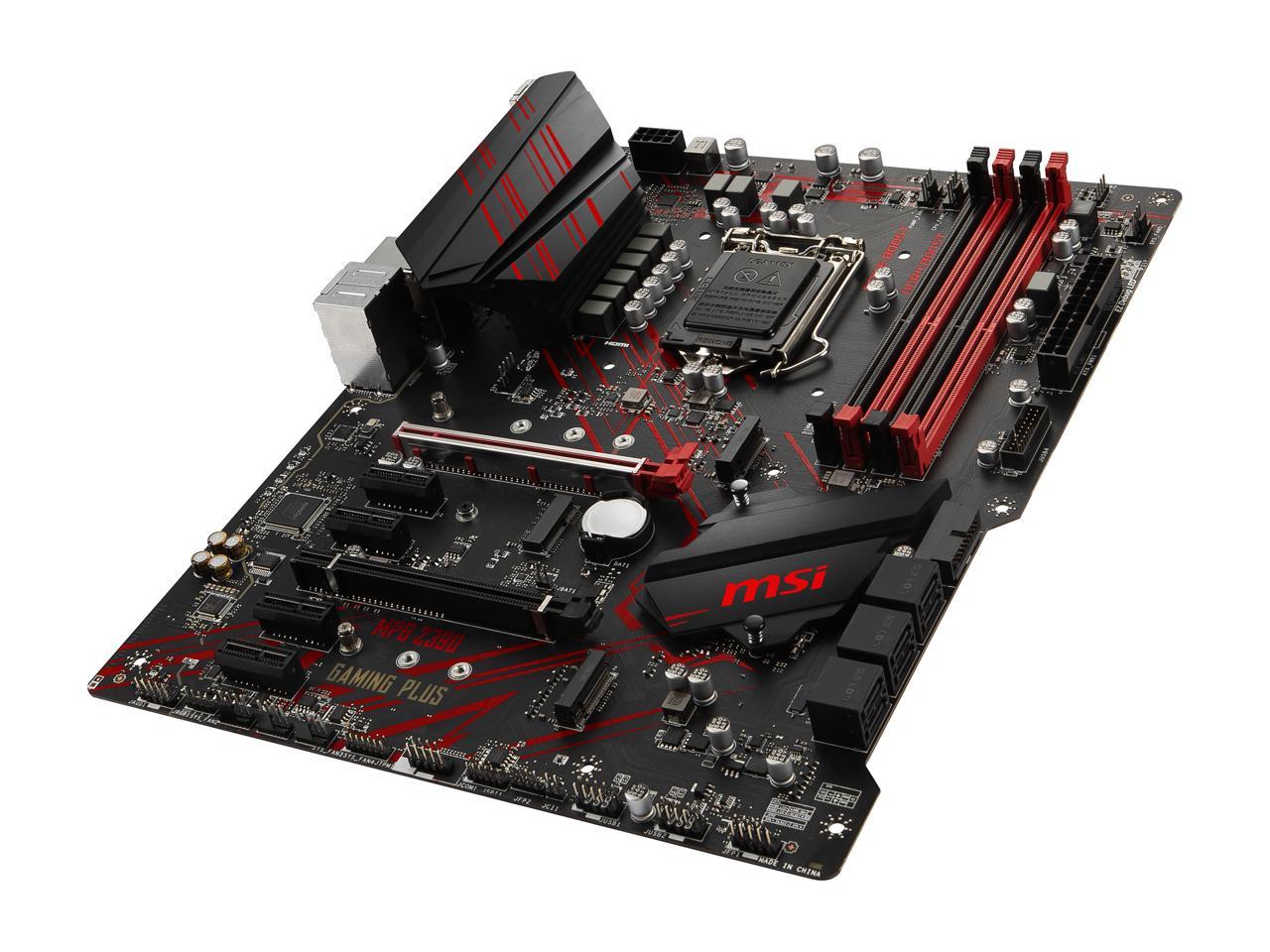

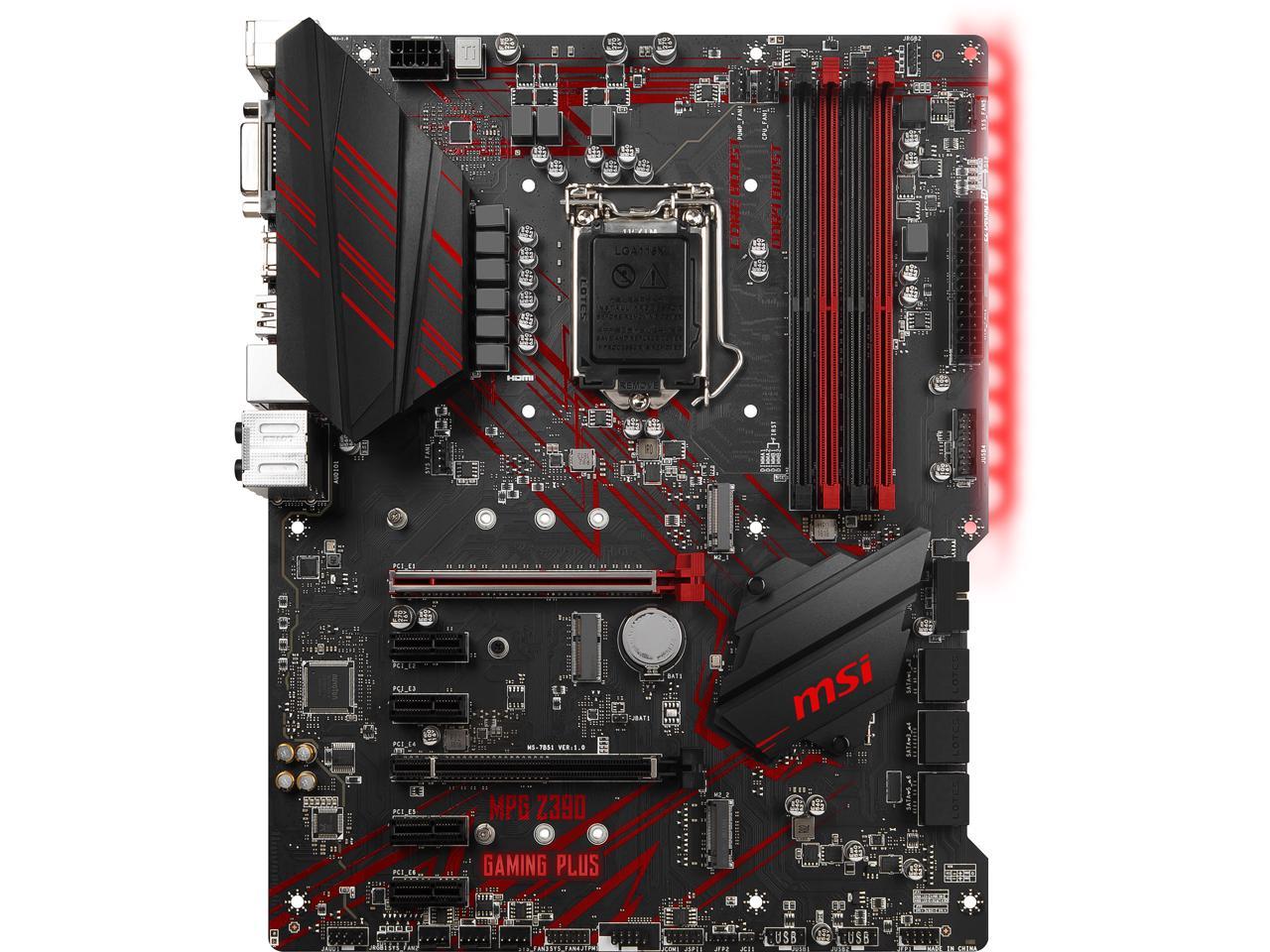

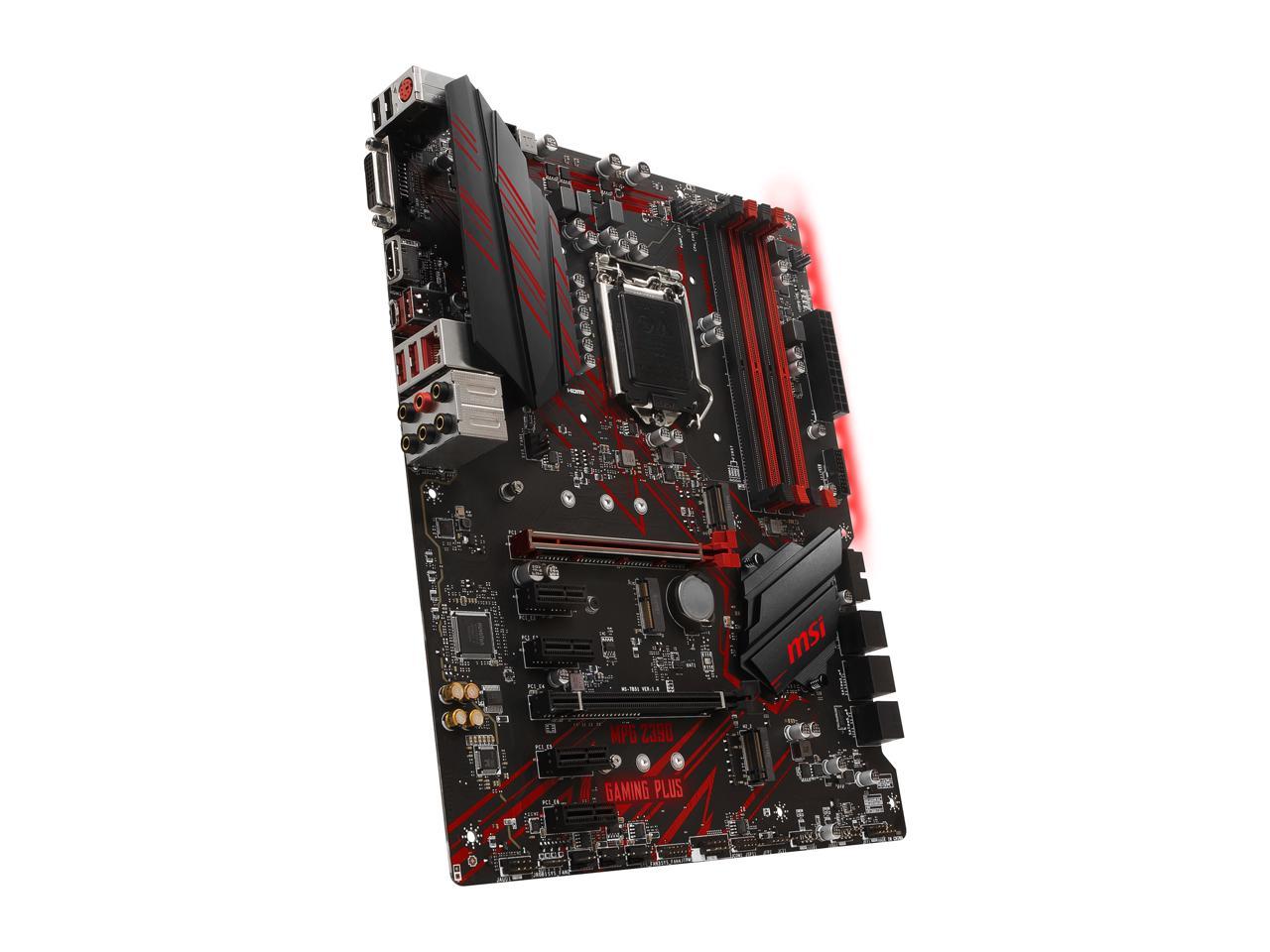

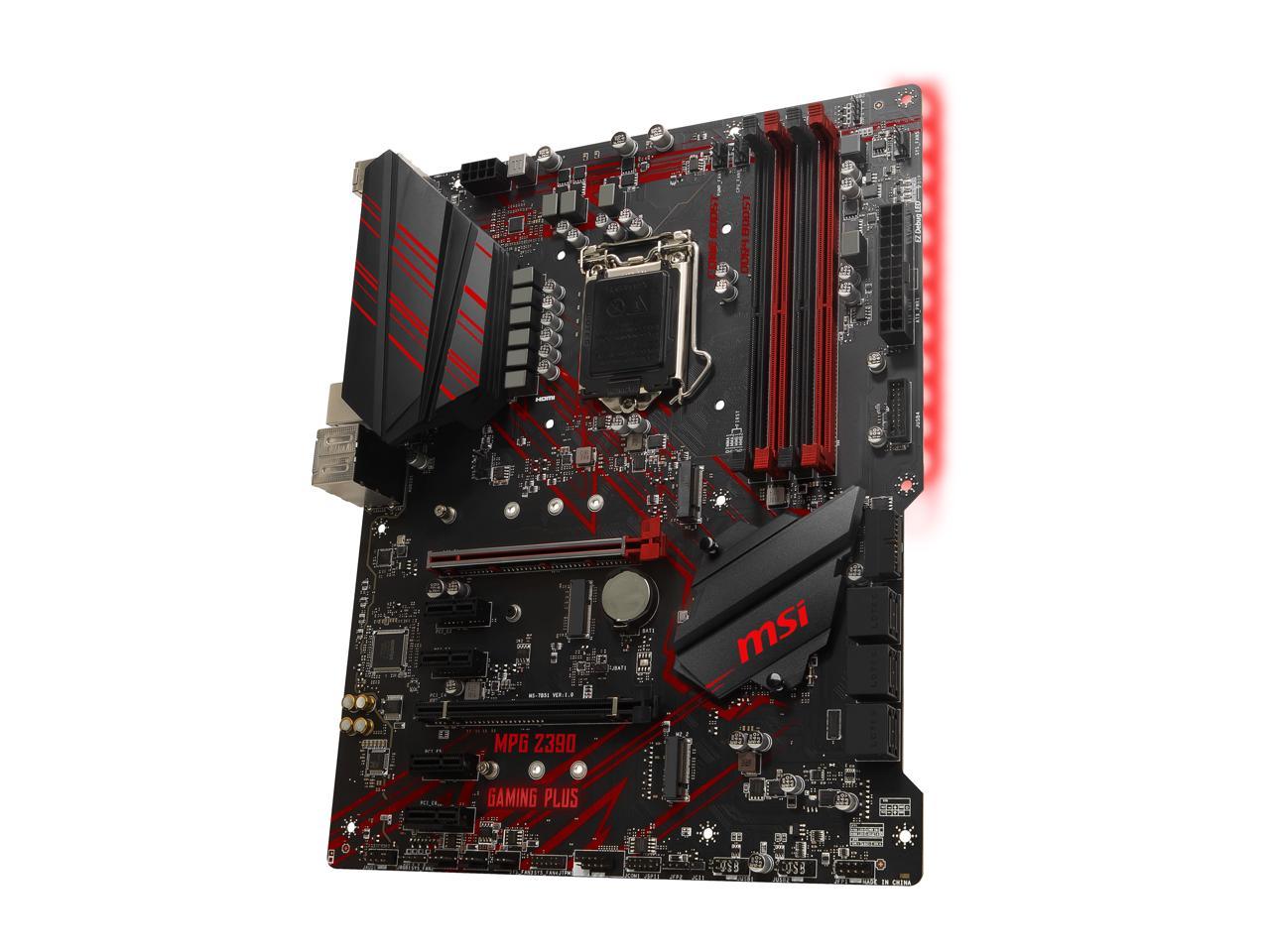

MSI MPG Z390 GAMING PLUS
Break Into New Dimensions
Satisfying gamers with what they really need, the GAMING PLUS series is equipped with all the crucial gaming weapons.
- With premium layout and fully digital power design to support more cores and provide better performance
- MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed
- With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Advanced technology to deliver pure data signals for the best gaming performance and stability
- Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds
- Reward your ears with studio grade sound quality for the most immersive audio experience
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweakers. MSI irregular PCB design is not only stylish but also makes SATA and USB cable routing easier. Arrange cables neatly even if you are not familiar with system build.
ENHANCED PERFORMANCE
MSI motherboards feature all the latest solutions for enthusiast gamers and prosumers. CPU and memory enhancement, fast storage and USB transfer speeds are ready to be on the battlefield.
CORE BOOST
Core Boost technology combines MSI’s premium layout and digital power design which provide faster and undistorted current delivery to the CPU at pin-point precision. Core Boost not only supports multi-core CPUs but also creates the perfect conditions for your CPU overclocking.
SOUND THAT PULLS YOU INTO THE GAME
Get the most immersive sound experience when gaming. MSI Audio Boost 4 / Audio Boost HD / Xtreme Audio DAC deliver the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, gaming-changing sound to create the most exciting gameplay experiences.
STAY COOL FOR ULTIMATE GAMING PERFORMANCE
With more cores’ processors, thermal and power design is prioritized to make sure that the temperature stays lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPUs to run in full speed with MSI motherboards.
UNLEASH YOUR NETWORK PERFORMANCE
Integrated Intel Wireless-AC (CNVi) Wi-Fi supports IEEE 802.11 AC Wave2, providing a high speed up to 1.73Gbps. Breaking the barrier with Intel CNVi WiFi while playing games and watching videos.
| Brand | MSI |
|---|---|
| Model | MPG Z390 GAMING PLUS |

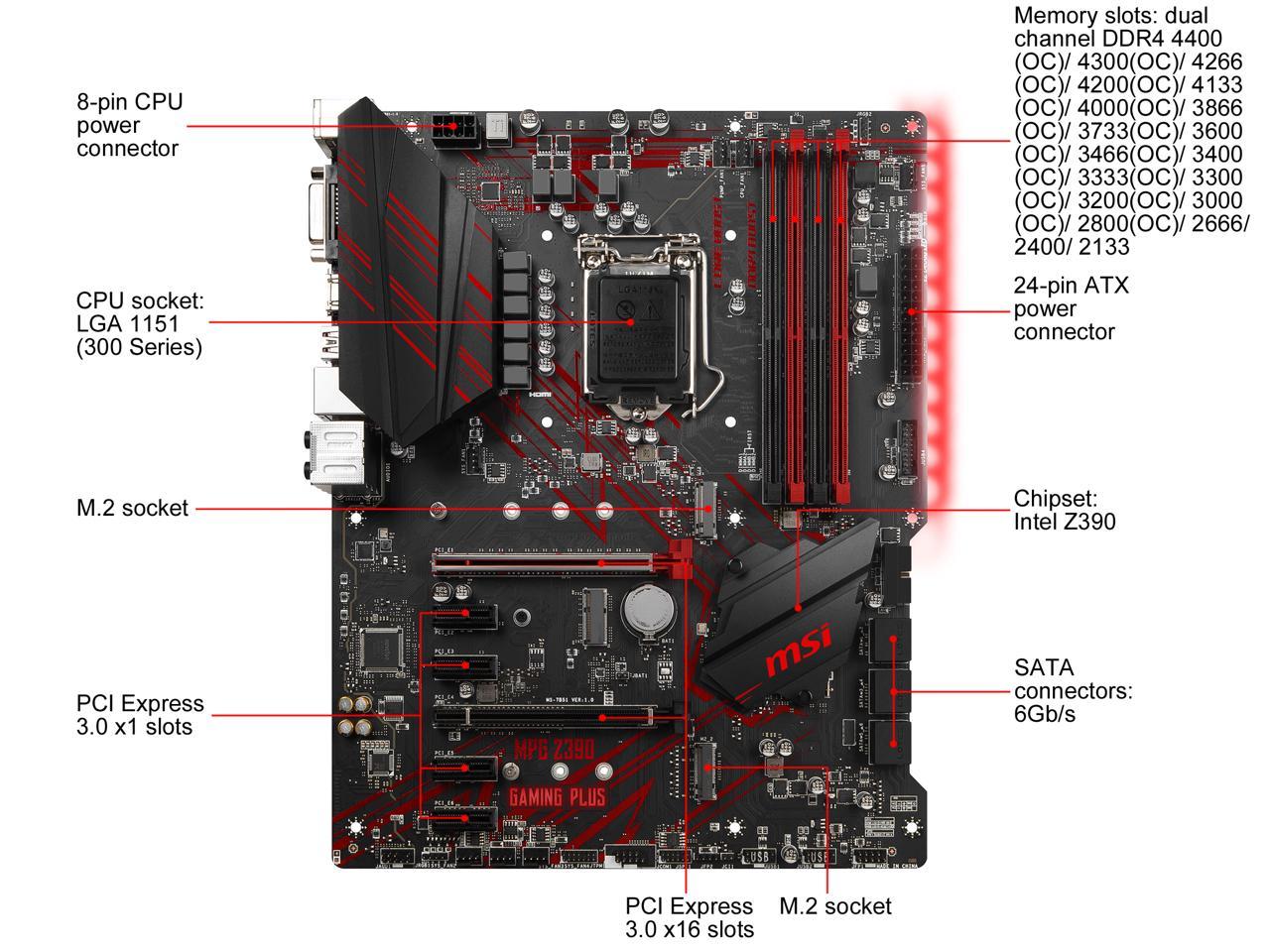

| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports Intel Core 9000 Series family / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096×2160@24Hz 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 4 x PCIe 3.0 x1 slots |
| Other Slots | 1 x M.2 slot with E key for Integrated Intel Wireless-AC (CNVi) module only |
| SATA 6Gb/s | 6 x SATA 6Gb/s ports* * M.2 slots and SATA ports share the bandwidth. Please refer user manual for details. |
|---|---|
| M.2 | 2 x M.2 slot (Key M)* M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices * M.2 slots and SATA ports share the bandwidth. Please refer user manual for details. |
| Intel Optane Ready | Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

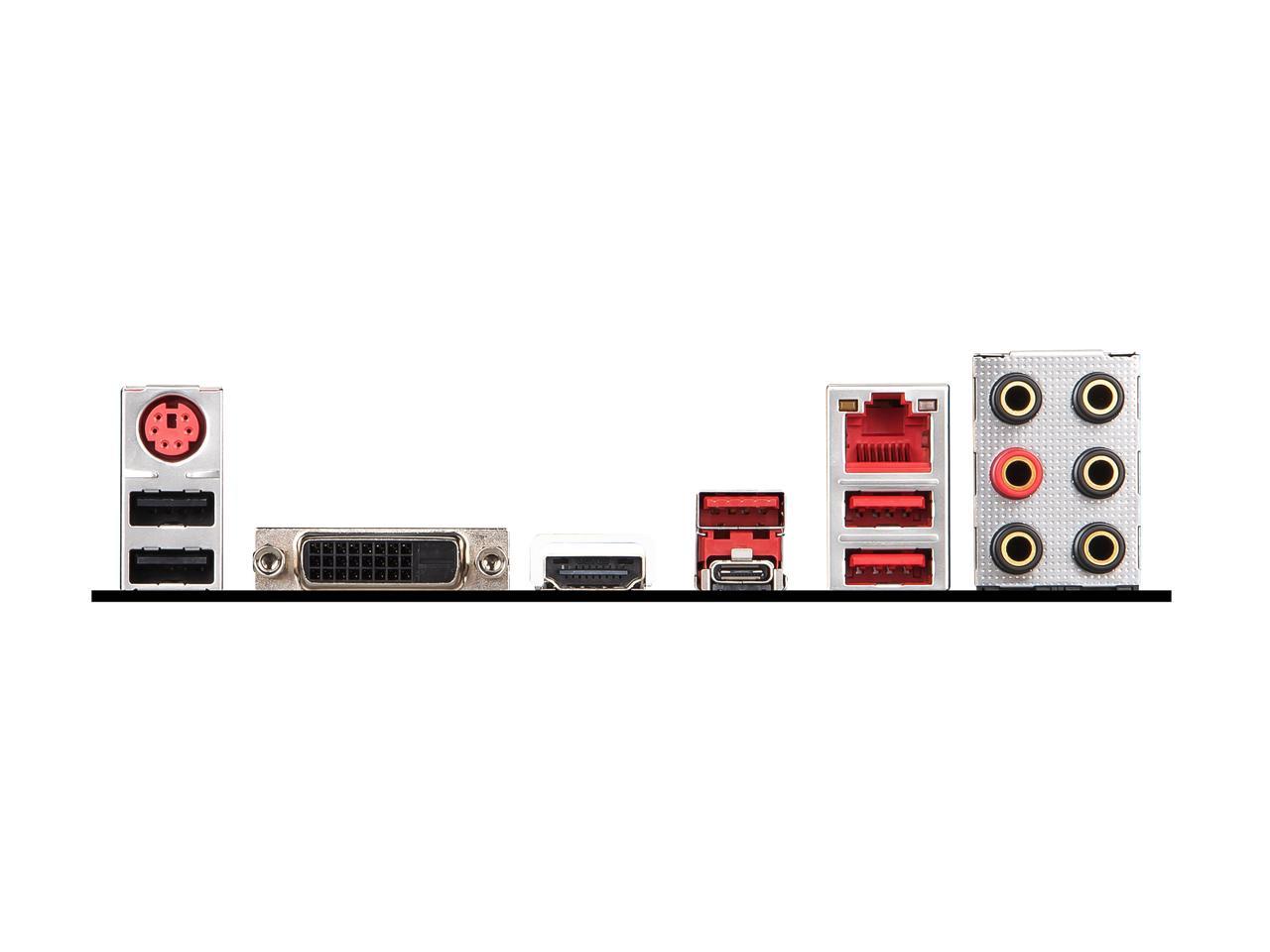

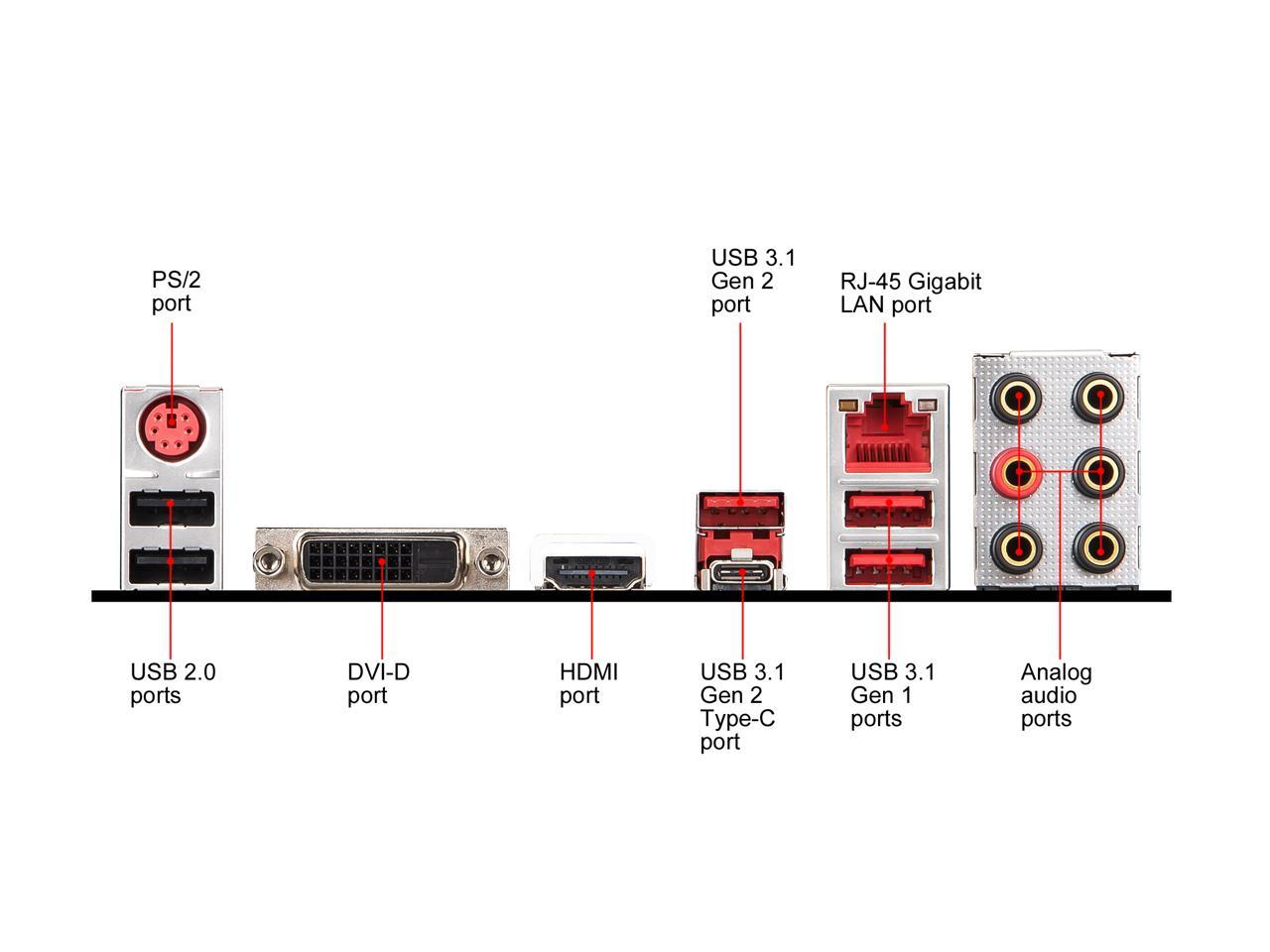

| Back I/O Ports | 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 1 x DVI-D |
|---|
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 2 x 4-pin RGB LED connectors 1 x Serial Port connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
